How to Make a Train Horn Sound Deeper: Trumpet Length, Tone, and Which Battery Tier Has the Lowest Note

Most people asking how to make a train horn sound deeper are hoping there's a setting somewhere — a screw to turn, a battery to swap, a pressure to bump. There isn't. Pitch is built into the metal, and specifically into the length of the trumpet. Once you understand that, the real fix gets obvious and about six internet myths fall away at the same time.

The short version: pitch lives in the trumpet, not the power source

A train horn has two jobs that people constantly mix up. The air side — battery, compressor, pressure, diaphragm — mostly sets how loud the blast is. The trumpet, or bell, sets what note comes out. HornBlasters' own train horn guide states it plainly: flare size and horn length control pitch, not volume, and longer, wider horns produce deeper tones while shorter, narrower horns create higher-pitched sound.

That single sentence is the whole answer to "how do I make it deeper." You need a longer bell. Everything else on the internet is either a side effect, a myth, or a way to make your horn quieter while you chase a lower note.

Why a longer trumpet plays a lower note

A horn trumpet works as a quarter-wave resonator: the column of air inside it vibrates, the length of that column sets the wavelength, and the wavelength sets the frequency. The rough math is f ≈ c / (4L), where c is the speed of sound (about 1,125 feet per second in room-temperature air) and L is the effective length of the air column. Double the length, drop an octave. Halve it, jump an octave up.

Run it backward and the numbers get useful. A 311 Hz note — the bottom chime of a Nathan AirChime K5LA, the horn most Americans picture when they hear "train" — wants roughly 10 to 11 inches of effective air column. There's the catch worth knowing: effective length is not tape-measure length. A trumpet flares, and a flared bell behaves acoustically shorter than it looks. That's why a bell that measures 19.5 inches end to end still lands in the high-200s Hz rather than down near 170 Hz where a straight pipe of that length would sit.

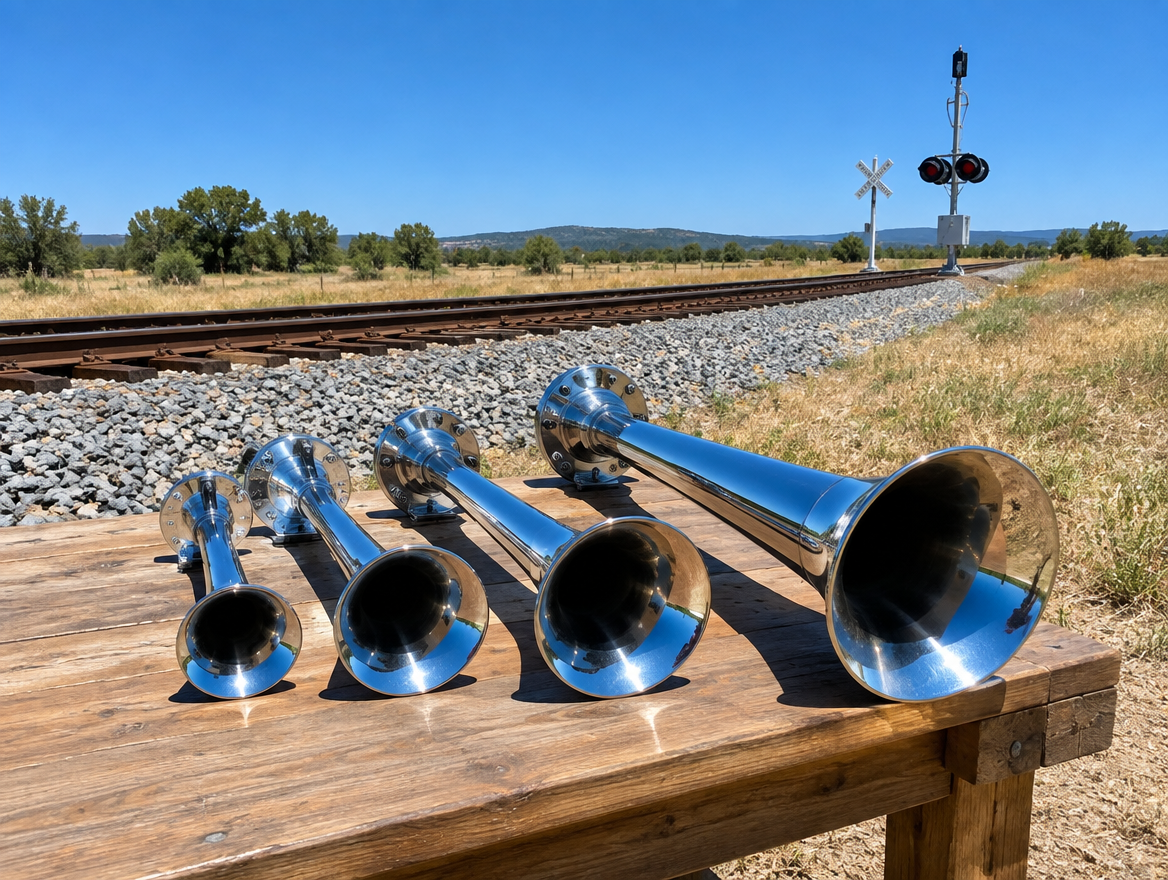

Published bell ladders show the pattern clearly. HornBlasters lists its four-bell Shocker XL at 19.50 in., 16.25 in., 14.75 in. and 12.75 in. behind a 5-inch flare. Four different lengths, four different notes, sounded at once — that's the chord. If you want the note-by-note breakdown of how those pitches stack up, we covered it in what note a train horn actually plays.

Here's the frequency territory that matters when you're shopping:

Horn type	Typical frequency range	What it sounds like
Bass train horns	277–494 Hz	The deep, chest-level locomotive note
Nathan AirChime K-series (real locomotive)	311–622 Hz	Full five-note chord, anchored low
Small high-pitch horns	740–1,975 Hz	The squeal zone — loud, but never "train"

Those ranges come from HornBlasters' published specs. Notice how little overlap there is. A stubby horn isn't a weak train horn; it's a different instrument entirely, and no amount of power will drag it down two octaves.

What actually makes a battery horn sound deeper

In order of how much difference it makes:

• Longer trumpets. This is the only change that genuinely moves the note. Our Extreme Trumpets Upgrade is built exactly for this — a heavy metal quad set with longer bells, rated at 150 dB at the trumpet mouth and +40% power over the standard set, specifically tuned for a low tone. It bolts onto any horn in our lineup.
• Buy the tier that ships with the long bells. Cheaper than retrofitting later. See Quad vs Extreme Series for the honest version of that upgrade decision.
• Give it full power on every blast. A horn running on a half-drained pack doesn't get deeper — it gets thin, reedy, and often higher, because the diaphragm can't hold its intended vibration. If yours already sounds pinched, start with why a horn goes weak, squeaky, or high-pitched before you spend money on trumpets.
• Keep the bells clear. Mud dauber nests, bug pack, and standing water inside a trumpet all change the air column in ways you didn't design. Clearing them restores the tone the horn was tuned to; it won't lower it past that.

Five things that will not make your horn deeper

• Taping a pipe extension onto the bell. This is the classic garage experiment. The problem is that the diaphragm and the flared bell are a matched pair — the horn is tuned as a system. Bolting a straight tube onto the mouth of a flare fights the geometry the horn was designed around, so you almost always lose output before you gain any depth, and you add a rattle.
• A bigger battery. A higher-amp-hour pack buys you run time and steadier output under load, not a lower note. Voltage is fixed by the platform either way.
• Treating the diaphragm set screw as a bass knob. Adjustable horns do have a set screw behind each bell, but it sets diaphragm preload for tuning accuracy — HornBlasters says its technicians tune each horn to within 1 Hz of a target note. Turning it blind on a factory-tuned horn is far more likely to kill output than deepen tone.
• Boxing the horn in. Enclosing the trumpets in a toolbox or under a panel muffles the whole signal. Muffled is not deep. Aiming matters, and we go through it in how to make your train horn louder.
• Judging tone from a phone video. Phone mics roll off exactly the low frequencies that make a horn sound deep, then clip on the peaks. What you hear in a clip is the worst-case version of the tone.

Which battery horn tier has the lowest note?

Trumpet count and trumpet length move together in our lineup, so the tiers line up neatly by tone:

Tier	Trumpets	Output	Tone character
Dual	2	~130 dB	Two notes — a real interval, recognizably train-like, but the thinnest of the three and the shortest bells
Quad	4	~140 dB	Four stacked notes; the chord fills out and reads as a locomotive instantly
Extreme / Boss Series	4 (long metal)	150 dB at the trumpet	The deepest in the lineup — a low diesel-locomotive note, not a dog-whistle squeak
5-Trumpet	5	150 dB at the trumpet	Five different lengths, five pitches — richer lows and crisper highs stacked together

If the lowest note is your priority and not just the fullest chord, the Extreme and Boss tiers are the answer. The 5-trumpet models add a wider chord rather than a lower floor — more notes, not a deeper bottom.

On the battery side it makes no difference to pitch which platform you run. The Extreme Series Train Horn for Milwaukee® 18v Battery and its DeWalt®-, Ryobi®- and Makita®-compatible siblings all use the same long metal quad trumpet set, so they all play the same low note. Pick whichever battery you already own.

Why deeper also means it carries farther

Depth isn't only about sounding right. The National Park Service's natural sounds program puts the physics simply: low frequency sounds travel farther than high frequency ones. Long wavelengths bend around obstacles and shrug off air absorption that eats high frequencies alive.

The numbers make it concrete. A 311 Hz note has a wavelength of about 3.6 feet — big enough to diffract around a parked truck or a hedge and keep going. A 1,975 Hz squeal is under 7 inches of wavelength; it reflects, scatters, and dies fast. Two horns measured at the same decibel level will not reach the same distance if one is an octave lower.

Real railroads work the same principle in reverse. Federal regulation 49 CFR 229.129 requires a lead locomotive horn to produce between 96 and 110 dB(A) measured 100 feet ahead of the locomotive — a ceiling, not a floor. Locomotive horns don't win on raw decibels. They win because the sound is pitched low enough to travel. For how those numbers compare with what a portable horn puts out, see our real-world decibel guide.

FAQ

Can I make my existing horn deeper without buying new trumpets?

Not meaningfully. You can restore the tone it was built to make — clean the bells, run a full battery, check for a leaking air line — but you can't retune a bell to a note it isn't the right length for. Depth comes from length.

Do metal trumpets sound deeper than plastic ones?

Material affects durability and consistency far more than pitch; length and flare set the note. A stainless diaphragm holds its tuning better than plastic over time, which is a tone-stability argument rather than a depth argument.

Does a higher-capacity battery deepen the sound?

No. More amp-hours means more blasts per charge and less sag on long presses. The note is the same. What a strong pack does prevent is the thin, strained sound a dying pack produces.

Is a deeper horn automatically a louder horn?

They usually travel together in our lineup because the deep-tone sets are also the high-output sets, but they're separate properties. A 150 dB Extreme horn is both lower and louder than a 130 dB Dual — the longer bells are doing both jobs.

What's the deepest-sounding horn you sell?

The Extreme and Boss Series quad horns, which use the longest metal trumpets in the lineup and are tuned for a low locomotive note at 150 dB measured at the trumpet. The same trumpet set is also available on its own as the Extreme Trumpets Upgrade if you already own a Dual or Quad horn.
