Search "DeWalt train horn" on TikTok or YouTube and you'll find the same garage recipe over and over: a 12V horn compressor stuffed into a 20V MAX™ drill shell, four chrome trumpets bolted on top, and a blast loud enough to rattle windows. This guide covers the DeWalt®-specific parts list, the two ways to tap a 20V MAX pack, the seven build steps, real costs, and the point where buying a finished horn beats another weekend of soldering.
What You're Actually Building

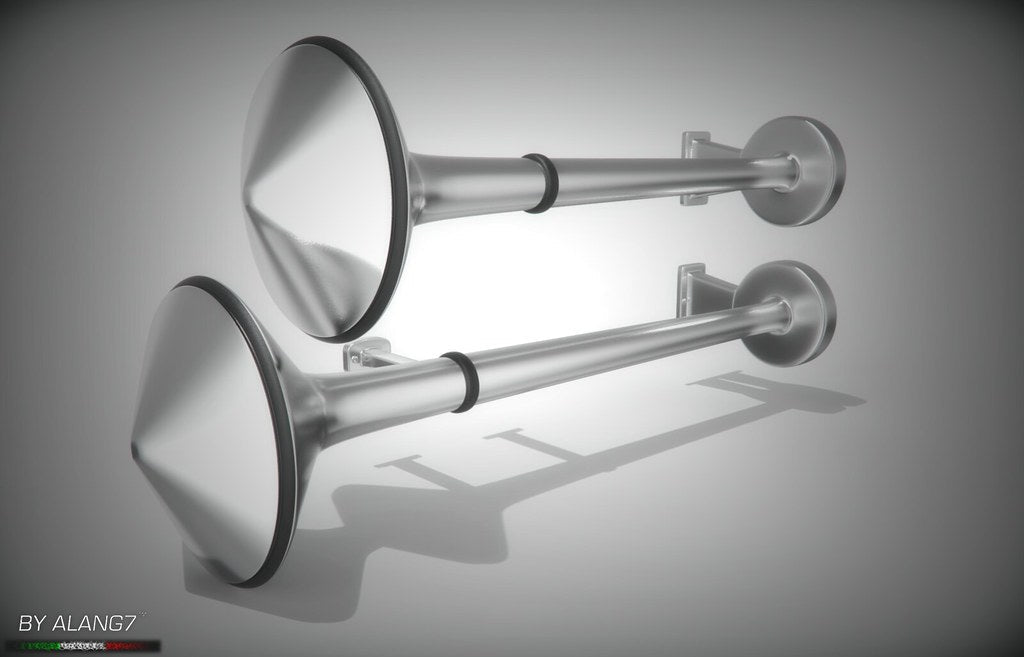

Every battery-powered train horn — homemade or factory-built — comes down to three subsystems. A compact 12V piston compressor feeds air straight to the trumpets in real time, no tank and no pressure switch. Two to four trumpets of staggered lengths turn that airflow into a locomotive-style chord instead of a single flat beep. And a battery interface connects your DeWalt® pack to the compressor, with a trigger switch or a wireless receiver to fire it.
Here's the DeWalt-specific wrinkle worth understanding before you buy parts: "20V MAX" is the battery's peak no-load voltage straight off the charger — the nominal working voltage of the platform is 18 volts, exactly like the other big cordless systems. That still overdrives a 12V automotive horn compressor by half again its design voltage, which is precisely why these builds hit so hard. The motor spins faster, pressure builds quicker, and the trumpets bark louder than they ever would on a car's electrical system. The tradeoff is heat: an overdriven compressor wants short blasts with rest in between, not a 30-second lean on the button.
The 20V MAX platform is a great base for the project because the slide-pack interface is consistent across the whole DCB battery lineup — compact packs, XR cylindrical-cell packs, pouch-cell PowerStack packs, and even the big FlexVolt bricks all click onto the same rails. Whatever batteries already live in your garage will run the horn you build.
The DeWalt-Specific Parts List
A from-scratch build on a 20V MAX pack needs the following:
| Component | What it does | Notes |
|---|---|---|
| Quad trumpet + 12V compressor set | The noise-making core | Trumpets, compressor, and tubing usually come bundled |
| 20V MAX battery interface | Gets power from the pack to the compressor | Donor tool shell or a dock-style terminal adapter — see below |
| Automotive relay | Switches the compressor's current | Keeps the heavy amp draw off your trigger switch |
| Trigger switch or wireless remote + receiver | Fires the horn | The remote is worth it — blast from outside the vehicle |
| Consumables | Wire, connectors, air tubing, heat shrink, fuse holder | Adds up fast if your bench isn't already stocked |
The battery interface is the decision that shapes the whole build, and you have two routes:
- Route A — donor tool shell. Gut a working or dead 20V MAX impact drill and reuse its housing, battery connection, and trigger. Your pack clicks in exactly like it does on the tool, the shell gives you a grip and a trigger for free, and the finished horn looks factory-built. This is the route the dedicated DIY kits are designed around.
- Route B — dock-style adapter. Aftermarket 20V MAX terminal docks — the kind sold for Power Wheels conversions and robotics projects — give you a slide-on receptacle with 12-gauge leads, typically rated around 20 amps of continuous draw, and most ship with a 30-amp inline blade fuse. You wire the leads to your relay and compressor and mount the dock wherever it fits. One caution: wiring straight to the pack terminals bypasses the low-voltage protection that normally works through the tool, so a cheap low-voltage cutoff board is smart insurance against over-draining a pack you forgot to unclip.
Step-by-Step: The Donor-Drill Build
The published instructions for the DeWalt-compatible DIY kits follow a seven-step arc, and a from-scratch build mirrors it:
- 1. Open the clamshell. Unplug the battery first, then unscrew the drill housing and pull the motor, gears, and stock wiring.
- 2. Fit the compressor. Test-fit the air compressor in the empty shell and trim internal ribs until it seats flat.
- 3. Install the new harness. Run the new wiring harness and connect the compressor leads to the battery terminals through the relay.
- 4. Test before closing. Click a 20V MAX pack on and confirm the compressor spins. Fix wiring now, not after reassembly.
- 5. Close and drill. Reassemble the clamshell and drill two mounting holes for the horn bracket.
- 6. Mount the trumpets. Bolt on the horn brace, thread the trumpets back on by hand, and connect the air hose from compressor to manifold.
- 7. Final test. Battery on, outside, ears protected — and blast.
Two safety notes every build guide repeats for good reason. First, never test indoors: OSHA's noise standard caps impulse noise exposure at a 140 dB peak, and a train horn at arm's length in a closed garage gets you there instantly — wear ear protection outdoors too. Second, isolate vibration: a strip of foam tape under the compressor keeps it from buzzing against the shell.
If the finished horn is headed for a truck bed, UTV cage, or boat console rather than staying handheld, our battery train horn installation guide covers bracket placement, hose routing, and where to hide the receiver.
What It Costs — and Where the Money Goes
We ran the component-by-component math in our guide to making a train horn with a drill battery, built on a published from-scratch build sheet for this exact 20V MAX project: roughly $64 for the core electronics, about $142 once you add the battery interface, and around $220 all-in if you're starting from an empty bench and buying consumables too. The battery interface is consistently the expensive line item — a donor 20V MAX tool costs real money unless a dead one is already sitting in your garage.
That's why the pre-matched kit exists. The DIY Train Horn Kit for DeWalt® 20v Battery bundles the quad metal trumpets, high-output compressor, pre-wired harness with integrated remote receiver, wireless remote, air hose, and mounting screws for $160 — you supply the donor drill, battery, and charger. The hardware is rated up to 140 dB, it fits most 20V MAX impact drill housings, and the kit drew enough attention that SlashGear ran a dedicated write-up on the build. An optional Extreme Trumpets upgrade pushes the output ceiling higher still with longer, lower-pitched trumpets. You keep the satisfaction of the build without hunting down six separate parts and hoping the amp ratings match.
The Ready-Made Shortcut: Same Battery, Zero Soldering
If what you actually want is the loudest possible horn on the 20V MAX packs you already own — and the build itself was just the means — the assembled route skips every step above. The Extreme Series Train Horn for DeWalt® 20v Battery arrives wired, tuned, and tested: 150 dB from four low-pitch metal trumpets, a wireless remote in the box (with a 2,000-foot long-range remote available), and a warranty a homemade harness will never have. Click a pack on and it works — no donor tool sacrificed, no relay wiring, no fuse math.
A fair rule of thumb from watching a lot of these builds: if the project is the point, build it; if the horn is the point, buy it assembled and spend the saved afternoon installing it properly. Our breakdown of the Dual, Quad, and Extreme tiers for DeWalt® 20V MAX batteries maps where each loudness level lands on price, and the full DeWalt-compatible train horn lineup is browsable in one place. And if your garage runs red instead of yellow, the same hardware family exists as the Extreme Series Train Horn for Milwaukee® 18v Battery — we wrote the same build-vs-buy walkthrough for that platform in our Milwaukee® M18™ build guide.
FAQ
Which DeWalt batteries will run a homemade train horn?
Any 20V MAX slide pack — compact, XR, or pouch-cell PowerStack — fits both a donor-shell build and a dock adapter, because the slide interface is shared across the platform. FlexVolt packs work too: in a 20V tool or adapter they run in 20V mode and deliver their full rated amp-hours, so a 6Ah FlexVolt brick is just a big, heavy 20V battery as far as the horn is concerned. Bigger packs simply mean more blasts per charge — in this horn class, even a 2Ah pack is good for 500+ short honks.
Will 20 volts burn out a 12V horn compressor?
Not immediately — overdriving the compressor is exactly what makes these builds loud, and it's standard practice in the drill-battery horn genre. The cost is heat. Keep blasts to a few seconds, let the compressor rest between them, and it will live a long life. Lean on the button for half a minute at a time and it won't.
Do I have to sacrifice a working drill?
No. The donor shell only contributes its housing, battery connection, and trigger — a dead drill with a burned-out motor works perfectly, and used ones are cheap. If you'd rather not gut a tool at all, a dock-style terminal adapter gives you the battery connection on wire leads, or you can skip the interface problem entirely with an assembled horn.
How loud will my DIY build actually be?
The quad-trumpet kit hardware is rated up to 140 dB — genuinely in train-horn territory, and far beyond any stock vehicle horn. The assembled Extreme Series reaches 150 dB because its compressor, trumpets, and tuning are matched at the factory. Either number is loud enough that ear protection for the person holding it isn't optional.
