A power-tool battery already delivers 18–20 volts of portable power — more than enough to spin the small 12V compressor inside a train horn. That's why "train horn on a drill battery" builds keep showing up on YouTube. Here's the real parts list, the build steps, the honest cost math, and the point where buying a ready-made horn simply beats building one.
What You're Actually Building
Strip away the project videos and every battery-powered train horn — homemade or store-bought — comes down to three parts working together:
- An air compressor. A compact 12V piston compressor that feeds air directly to the horns. No tank, no pressure switch — the compressor fires the trumpets in real time.

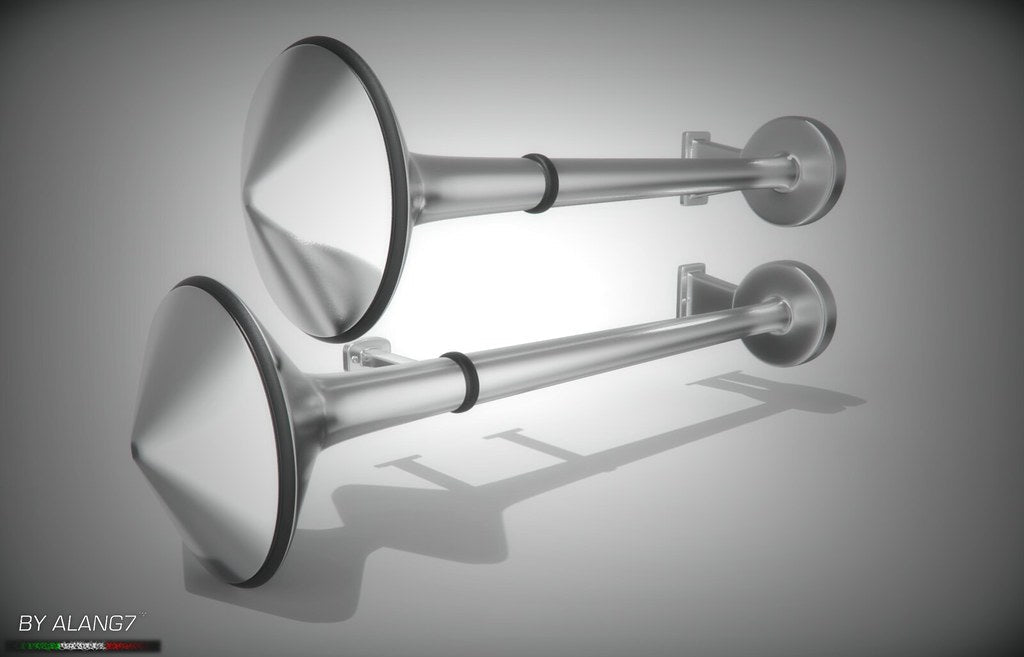

- Trumpets with diaphragms. Two to five horns of different lengths. Each length produces a different note, which is why a quad setup sounds like a locomotive chord instead of a single beep.
- A battery interface. The part that connects a Milwaukee M18, DeWalt 20V MAX, Ryobi ONE+, or similar pack to the compressor — plus a trigger switch or wireless receiver to fire it.
The trick that makes these builds loud: most horn compressors are 12V automotive units, and an 18V or 20V tool pack overdrives them. The motor spins faster, air pressure builds quicker, and the horns hit harder than they would on a car's 12V system. The tradeoff is heat — an overdriven compressor needs short blasts and rest between them, not a 30-second lean on the button.
The Full Parts List — and What It Actually Costs
Here's a realistic shopping list, based on a published build sheet for a DeWalt-battery horn plus current retail pricing for the individual components:
| Component | Typical cost | Notes |
|---|---|---|
| Quad trumpet + 12V compressor set | ~$40 | The core hardware — horns, compressor, tubing |
| Trigger switch | ~$8 | Must be rated for the compressor's current draw |
| Wireless remote + receiver | ~$10 | Optional but worth it — fires the horn from a distance |
| Automotive relay | ~$6 | Keeps high current off the trigger switch |
| Battery interface | ~$78 | The expensive part — a donor tool body or a terminal adapter for your pack |
| Consumables: tubing, wire, connectors, heat shrink | ~$76 | Adds up fast if your garage isn't already stocked |
Run the totals: about $64 for the core electronics, roughly $142 once you add the battery interface, and around $220 all-in if you're starting from an empty bench and buying the consumables too. That assumes you already own the battery and charger — the same assumption every ready-made battery horn makes.
Vendors who sell pre-matched DIY kits estimate 1–2 hours for a first-time assembly. A true from-scratch build — sourcing every part separately, soldering your own harness — usually runs an afternoon or more.
Step-by-Step: How the Build Goes
The exact sequence varies by kit, but published build guides all follow the same arc:
- 1. Prepare the battery interface. Whether you use a terminal adapter or a donor shell, you need clean, solid contact with the pack's positive and negative terminals. Loose contacts arc, and arcing kills both the connection and the pack.
- 2. Wire the relay circuit. Battery positive feeds the relay; the trigger switch (or remote receiver) only carries the small coil current, while the relay passes the compressor's full draw. If you skip the relay, the compressor's current runs through your trigger switch — and cooks it. Our guide on wiring a train horn to a push button with a relay walks through the full diagram.
- 3. Pair the remote. Press the receiver's learn button once, then the remote button, and the code is memorized. One warning from a published DeWalt-build guide: don't press the learn button twice — on many receivers that activates continuous-blast mode.
- 4. Mount the compressor and trumpets. Foam tape under the compressor kills vibration buzz. Drill the mounting holes for the trumpet brace, seat the horns, and connect the air line.
- 5. Check every air connection. A pinhole leak at a push fitting is the number-one reason homemade horns sound weak and wheezy instead of angry.
- 6. Test outdoors, with hearing protection, away from people and animals. Not negotiable — more on that below.
Once the horn works on the bench, mounting it on a truck, boat, or UTV is its own project — our step-by-step battery train horn installation guide covers brackets, placement, and aiming.
Where DIY Builds Go Wrong
The failure points are predictable, and most of them come down to things a matched kit already handles:
- No low-voltage cutoff. This is the big one. In many 18V and 20V tool platforms, over-discharge protection lives in the tool's electronics, not in the battery pack itself. Wire a compressor straight to the terminals and nothing stops you from draining the pack below safe voltage — for a typical 5-cell 18/20V pack, pulling it much below roughly 12.5V total can permanently damage the lithium cells. Aftermarket low-voltage cutoff boards exist for exactly this reason, and a scratch build without one is gambling with a $100+ battery.
- Undersized wire. Thin hookup wire sags under the compressor's draw. The symptom is a horn that sounds strong on blast one and progressively sadder after that.
- Ignoring duty cycle. Overdriven 12V compressors heat up fast. Short blasts with recovery time; sustained honking will smoke a small compressor regardless of who assembled it.
- Testing without hearing protection. OSHA's noise standard says exposure to impulsive noise should never exceed a 140-decibel peak — and 140 dB is exactly the territory a healthy quad horn plays in at close range. NIOSH's recommended limit for sustained workplace noise is just 85 dBA over eight hours. Arm's length from an unmuffled train horn is the worst seat in the house: use earmuffs on the bench, and fire it by remote once it's mounted.
The Honest Math: Scratch Build vs. Kit vs. Ready-Made
Now the part most build videos skip. A from-zero scratch build lands around $220 in parts, takes an afternoon, carries no warranty, and its loudness depends entirely on your wiring and air-fitting discipline. Compare that to the two off-the-shelf routes:
A DIY train horn kit gives you the fun of assembly with none of the sourcing risk: the compressor, trumpets, harness, relay, and remote are already matched to each other and to your battery platform, rated up to 140 dB, and you still put it together yourself in an hour or two — usually for less than the scratch-build parts total.
A ready-made horn skips the bench time entirely. Something like the Extreme Series Train Horn for Milwaukee® 18v Battery arrives assembled, tested, and rated at 150 dB — louder than realistic scratch-build territory — with a wireless remote and a warranty a homemade harness will never have. Click the battery in and it works.
And if what you actually want is a permanent, plumbed-in system for a truck rather than a portable battery unit, complete 12V compressor-and-tank kits run roughly $90–$165 at major retailers — a different animal with different tradeoffs, which we compare in detail elsewhere.
The bottom line: build from scratch if the project itself is the point. If the horn is the point, a matched kit or an assembled unit gets you louder, safer, and cheaper-per-decibel.
FAQ
Can I really run a 12V horn compressor on an 18V or 20V battery?
Yes — that's the entire premise of the drill-battery horn genre. The compressor motor tolerates the overvoltage in short bursts and rewards you with faster pressure and a louder hit. The costs are extra heat and a shorter compressor life if you lean on long blasts, so keep them short.
Do I need a relay, or can the switch handle it?
Use the relay. Horn compressors pull far more current than a small trigger switch or remote receiver is built to pass. The relay lets the switch carry only a tiny signal current while the heavy load runs through contacts designed for it.
How loud will a homemade horn actually be?
Quad-trumpet DIY kit hardware is rated up to 140 dB measured up close. A scratch build with sloppy wiring or a leaky fitting will land meaningfully below its rating — voltage sag and air loss are both loudness killers. Factory-assembled premium units like the Extreme Series are rated at 150 dB because the compressor, valves, and trumpets are matched and leak-tested before shipping.
Will this damage my battery?
It can, if you wire straight to the terminals with no low-voltage cutoff. Many tool packs rely on the tool — not the pack — to stop discharge at a safe floor. Add a cutoff board to a scratch build, or use a kit or assembled horn that has protection built into its electronics.
Is a homemade train horn legal to use on the road?
Horn laws vary by state, and they apply the same whether you built the horn or bought it. As a rule of thumb: private property and off-road use is where a train horn belongs; on public roads, check your state's vehicle code before you honk.
