Plenty of American garages already run on BLACK+DECKER®: a drill, a string trimmer, maybe a leaf blower, and two or three 20V MAX™ slide packs rotating through one charger. Here is the part most owners don’t know — those same packs will power a 140 dB quad train horn with zero wiring, no compressor tank, and no 12V hookup.
Yes — There Is a Train Horn Built for BLACK+DECKER® 20V MAX™ Batteries

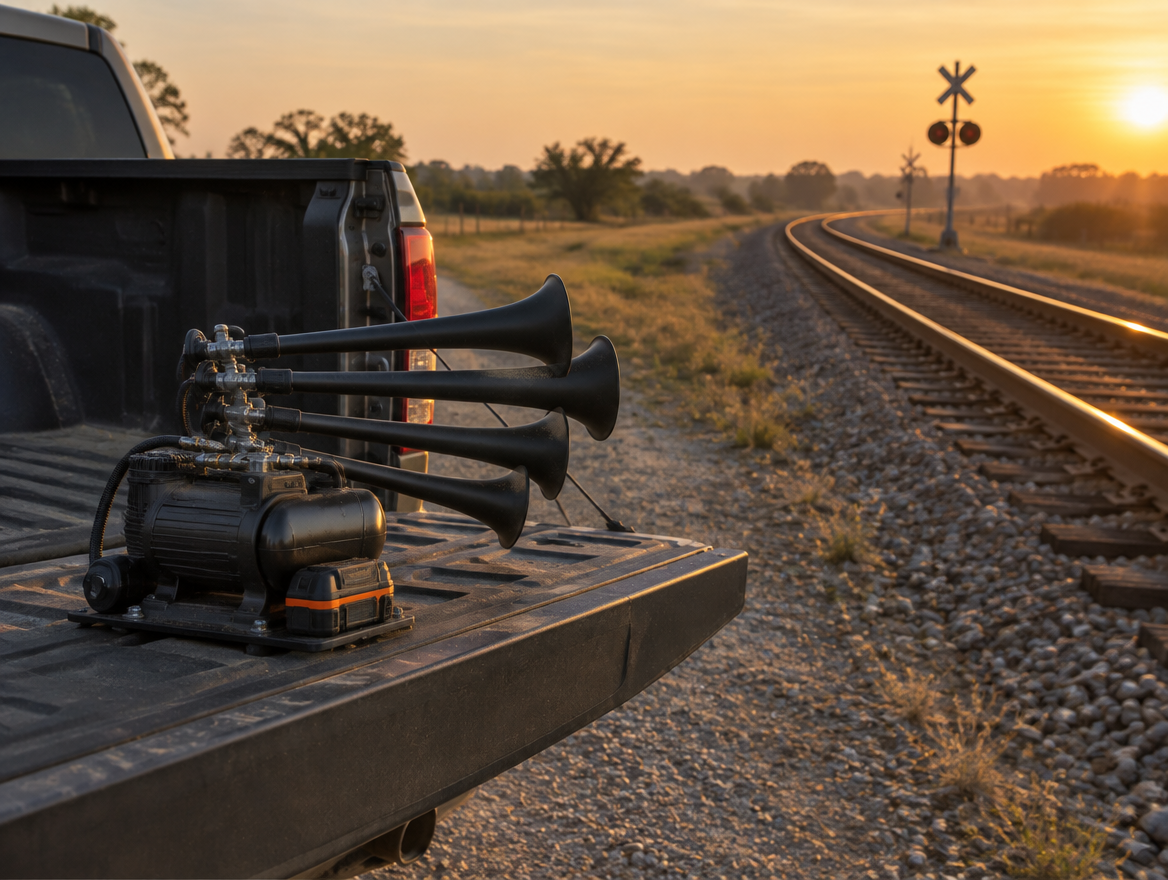

The Quad Train Horn for BLACK+DECKER® 20V battery arrives fully assembled: four powder-coated aluminum trumpets (14", 12", 8", and 5") plumbed to a self-contained compressor unit with a native BLACK+DECKER® battery mount. Slide a charged pack on, and you can fire it two ways — pull the trigger on the unit itself, or hit the included wireless remote from up to 160 ft away. If you want to trigger it from a treestand, a shop window, or the far end of a property, the optional long-range remote reaches up to 2,000 ft line-of-sight. The whole unit weighs about 4 lb before the battery, so it moves easily between a truck bed, a boat, and a UTV.
There is nothing to install unless you want to. The included mounting bracket lets you bolt it behind a grille or under a bed rail, but plenty of owners keep it loose as a grab-and-go horn. If you want to compare trumpet configurations first, the full lineup of horns for BLACK+DECKER® 20V batteries is on one page.
What “20V MAX” Actually Means for a Horn
BLACK+DECKER® prints the fine print right on its battery spec pages: maximum initial battery voltage, measured without a workload, is 20 volts — nominal voltage is 18. In plain terms, a 20V MAX™ pack is an 18V-class pack. Fresh off the charger with no load, the lithium-ion cells inside rest high enough to read about 20 volts; put them to work and they settle to their nominal rating. Every major “20V” tool platform in the US uses the same labeling convention.
Why does that matter for a train horn? Because it means the compressor in a BLACK+DECKER-compatible horn sees essentially the same voltage as one running on a Milwaukee® M18™ or DeWalt® 20V MAX™ pack. Loudness comes from the trumpet count, trumpet length, and compressor design — not from the brand name molded into the battery. We ran the numbers on that comparison in our Milwaukee® M18™ vs DeWalt® 20V MAX™ battery breakdown, and the takeaway holds here: pick the horn that matches the packs you already own, because the batteries themselves are functionally even.
Which Packs Fit — and the DeWalt® Question
The horn accepts any BLACK+DECKER® 20V MAX™ slide-style pack, from the small 1.5Ah units up through 12Ah aftermarket packs. BLACK+DECKER’s own POWERCONNECT™ lineup covers the common sizes: the 1.5Ah LBXR20 (a 30 Wh pack that weighs just 0.9 lb), a 2.0Ah, and a 4.0Ah. Third-party 20V MAX-compatible packs push capacity higher — 5Ah, 6Ah, 8Ah, and beyond — and those work too, as long as they use the standard slide interface.
One question comes up constantly: BLACK+DECKER® and DeWalt® are both owned by Stanley Black & Decker, so are the batteries interchangeable? No. The two platforms use different terminal layouts — DeWalt® packs carry five contact pins where BLACK+DECKER® packs carry four — and the rail slots that lock the pack to the tool are shaped differently. A DeWalt® pack physically will not seat on a BLACK+DECKER® mount, and vice versa. If your packs are yellow, buy the Quad Train Horn for DeWalt® 20V battery instead; if you are set on running one horn across two battery brands, third-party adapters exist, and we covered where they make sense (and where they don’t) in our cross-brand battery adapter guide.
Loudness: What the Quad Tier Delivers
Battery train horns sort into three loudness tiers: dual-trumpet models around 130 dB, quad-trumpet models around 140 dB, and the Extreme and Boss Series builds at 150 dB and up. The BLACK+DECKER-compatible model sits in the quad tier — four trumpets cut to different lengths so each one sounds a different note, which is what produces that discordant, multi-pitch locomotive chord instead of a single flat honk. At 140 dB up close, it is dramatically louder than a stock car horn and loud enough to be heard through a closed cab, over a mower deck, or across open water.
If you are chasing the absolute top of the loudness range, the 150 dB-class builds like the Extreme Series Train Horn for Milwaukee® 18v Battery use longer trumpets and a higher-output compressor for a deeper, harder-hitting blast — the Extreme tier is currently built for Milwaukee®, DeWalt®, Ryobi®, and several other battery mounts. For most BLACK+DECKER® pack owners, though, the quad tier is the sweet spot: seriously loud, still compact, and it runs on the batteries already in your garage.
Runtime: How Many Blasts per Charge
A train horn is a burst load, not a continuous one, so even small packs go a long way. The published figure for this horn family is 500+ short blasts — or roughly 200 sustained blasts — on a 6Ah pack. Scale that linearly by capacity and you get a realistic planning table:
| Pack size | Short blasts (est.) | Sustained blasts (est.) |
|---|---|---|
| 1.5Ah (LBXR20) | ~125 | ~50 |
| 2.0Ah | ~165 | ~65 |
| 4.0Ah | ~330 | ~130 |
| 6Ah (aftermarket) | 500+ | ~200 |
Treat the smaller-pack numbers as estimates scaled from the 6Ah figure — cold weather, pack age, and long continuous blasts will pull them down. Even so, the practical read is simple: a 1.5Ah pack that came free with a drill kit is plenty for months of normal use, and a 4Ah or larger pack turns the horn into something you charge a few times a season. BLACK+DECKER® also states its lithium-ion packs hold a charge for up to 18 months in storage, which suits a horn that may sit in a boat locker or truck box between uses. How capacity, voltage sag, and duty cycle interact is covered in more depth in our 2Ah vs 5Ah vs 9Ah runtime comparison.
FAQ
Will aftermarket 20V MAX-compatible packs work?
Yes. Any pack built to the BLACK+DECKER® 20V MAX™ slide-pack standard will seat and run the horn, from 1.5Ah up to 12Ah. Higher-capacity aftermarket packs are a cheap way to extend runtime without buying a second charger.
Can I run this horn on a DeWalt® or Craftsman® pack?
Not directly — each battery platform has its own terminal layout and rail geometry, so packs do not cross between mounts. Every major platform has its own horn version — including Craftsman® V20™ — so match the horn to the packs you own.
Do I need a special charger?
No. The horn draws from the pack exactly like a tool does, so your existing BLACK+DECKER® charger handles everything. If you want a dedicated spare for the horn, a 20V MAX-compatible charger is available as an add-on.
Is a 1.5Ah pack really enough?
For occasional use, yes — roughly 100+ short blasts per charge by our scaled estimate, and at 0.9 lb it keeps the whole setup under 5 lb. Step up to a 4Ah or 6Ah pack if the horn will see daily use or long sustained blasts.
How loud is 140 dB in practice?
Loud enough that hearing protection is smart when triggering it at arm’s length, and loud enough to carry far beyond shouting distance outdoors. That is the point of the remote: stand back, protect your ears, and let the trumpets work.
