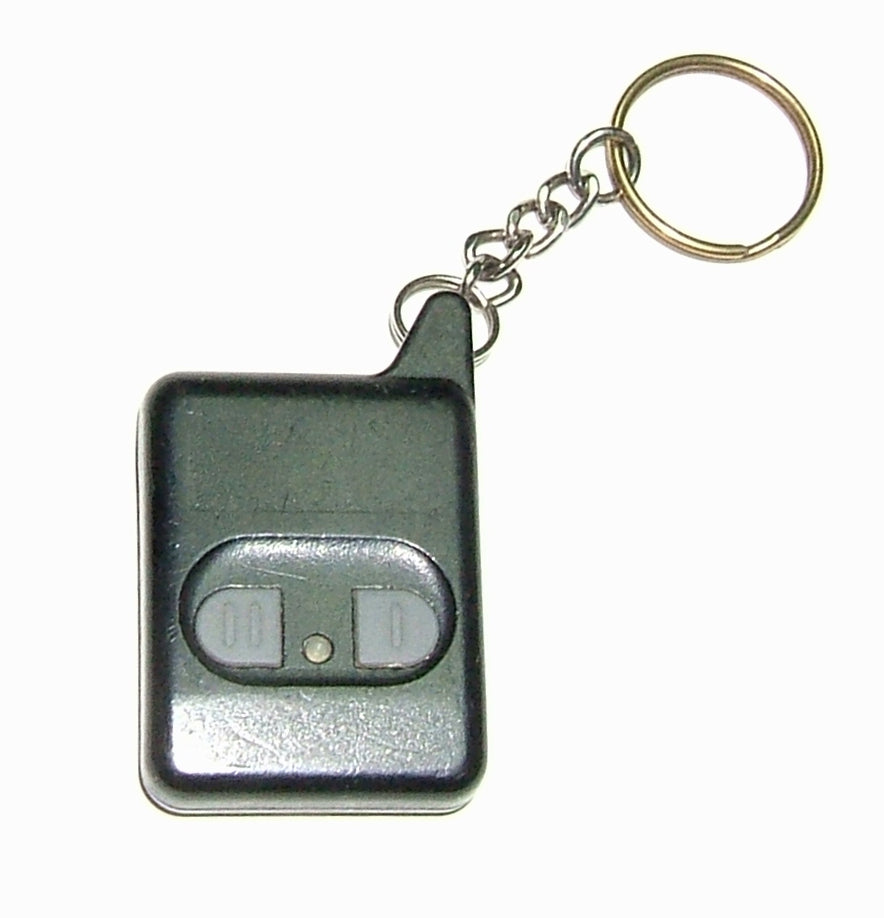

Every battery train horn we sell ships with a little key-fob remote that fires the horn from across a parking lot. That fob almost always runs on a 433 MHz radio link — the same band used by garage openers, car key fobs, and gate remotes. Understand how that link works and you'll know exactly why your horn answers from 1,500 feet one day and drops out at 200 feet the next.
What "433 MHz" Actually Means on Your Train Horn
433 MHz is a radio frequency — specifically the band centered near 433.92 MHz. Unlike the infrared remote on your TV, which needs a clear line of sight to a tiny window, a 433 MHz remote sends out actual radio waves that travel through air, plastic, and even some walls. Press the button and the fob transmits a short burst: a unique transmitter ID plus a button code. A receiver board tucked inside the horn listens on that same frequency, checks whether the ID matches one it's been paired to, and if it does, it closes the circuit and the horn blows.
Most of these fobs use an inexpensive encoder chip (the EV1527 family is the common one) that sends data using amplitude-shift keying — the radio carrier is switched on and off to spell out ones and zeros. It's simple, cheap, and reliable, which is exactly why the whole industry standardized on it for garage doors, alarms, and horns alike. The trade-off is that 433 MHz is a crowded, shared band, and that's the root of most range and dropout complaints.
One US-specific note worth knowing: in Europe the 433 MHz band is a formal license-free ISM band, but in the States these remotes operate as unlicensed short-range control devices under FCC Part 15. The rules (Part 15.231 covers control signals like door openers and remote switches) allow the transmitter only because it sends brief, low-power control bursts rather than a continuous signal. That legal limit on power is one reason your fob can't just shout through a steel truck bed — it's capped on purpose.
How Pairing Works — Learning the Remote to the Receiver
"Pairing" (also called learning or code-matching) is how the receiver memorizes which fob it should obey. The exact button dance varies slightly by model, but the pattern is almost always the same:
- Put the receiver in learn mode. There's a small learn/code button on the horn's control box. Press it (often two quick taps) until an LED begins to flash, signaling it's listening for a new code.
- Send the code. Within a few seconds, press the fire button on the remote once. The LED flashes again to confirm it captured the transmitter ID.
- Test it. Step back, press the button, and the horn should sound. That's it — the receiver now answers only fobs whose ID it has stored.
Because the receiver can usually store more than one ID, this is also how you add a second or backup fob — just repeat the learn sequence with the new remote. If you ever want to add a spare so two people can fire the horn, an Extra Remote Control pairs the same way in under a minute.
If pairing fails, it's almost never the radio — it's timing. You have only a few seconds in learn mode, so press the fob promptly. A nearly dead fob battery can also fail to register cleanly, which is why a fresh coin cell is step one of any pairing problem.
Real-World Range — Why "2,000 ft" Is a Line-of-Sight Number
Our long-range remotes are rated up to 2,000 feet, and the standard fobs are rated a few hundred. Those are best-case, open-air, line-of-sight figures — the radio equivalent of EPA highway mileage. A bare 433 MHz module typically pushes a usable signal somewhere in the 150 to 250 foot range with no help, and a good antenna plus a clear path is what stretches that to the headline number. The moment you put a vehicle, a building, or a body between the fob and the horn, the real number drops.
Here's the rough hierarchy of what eats range, from worst to mildest:
- Metal. The biggest enemy. Steel reflects radio waves rather than passing them, so a horn buried behind a steel bumper or inside a metal toolbox loses a huge chunk of its range. Mounting the receiver where its antenna has a clear shot out — not wrapped in sheet metal — matters more than any other single factor.
- Distance plus obstacles. Concrete walls, dense foliage, and another vehicle parked in between all attenuate the signal. Two hundred feet across an open field is easy; 200 feet through three parked trucks may not be.
- Antenna orientation. 433 MHz antennas are directional. A receiver antenna kinked, coiled, or pointed straight at the fob radiates poorly. Let it hang straight and roughly parallel to how you hold the fob.
If you're choosing between the standard fob and the long-range unit, we break the decision down in detail in our 300 ft vs 2,000 ft remote guide — the short version is that the upgrade earns its keep only when you genuinely fire from a distance, like across a farm or a worksite.
What Causes Dropouts — and How to Fix Them
A "dropout" is when the horn ignores a press it should have caught. Almost every dropout traces back to one of four causes:
- A weak fob battery. The single most common cause. As a CR2032 coin cell drains, transmit power falls and range shrinks first — you'll find yourself standing closer and closer before it fires. A healthy CR2032 reads about 3.0 volts; once it drops below roughly 2.7 volts, replace it. These cells last a couple of years in light use but die faster in cold weather or if a button gets pressed in your pocket.
- Radio interference. 433 MHz is shared with a lot of gear. Garage openers, weather stations, tire-pressure sensors, some LED-strip remotes, and electrically noisy motors all crowd the band. Standing next to a running engine, a big inverter, or another active 433 MHz remote can briefly mask your signal.
- Metal shielding the receiver. Same enemy as range. A receiver that fires fine on the bench but drops out once installed is usually boxed in by metal. Relocating it — or just routing the antenna wire out of the metal enclosure — fixes most of these.
- Edge-of-range operation. If you're already near the fob's maximum, any small obstacle tips you over the edge. Move 20 feet closer or step to where you can see the horn and the dropouts usually vanish.
Work through those in order — battery, line of sight, interference, distance — and you'll resolve the vast majority of remote complaints without touching a tool. For problems that go beyond the remote (the horn clicks but won't blow, or won't power on at all), our full maintenance and troubleshooting guide covers the horn and battery side.
Getting the Best Link From a New Install
Range and reliability are mostly decided at install time, by where the receiver and its antenna end up. When you mount the horn, give the receiver box a spot where its antenna isn't smothered by steel — behind a plastic grille panel, along a fender liner, or anywhere with a clear line out beats deep inside a metal bumper. Our step-by-step battery train horn install guide walks through placement, and it's worth thinking about the antenna's exit path while you're routing everything, not after.
The remote is only half the story, too. If you mostly fire the horn from the driver's seat, a hard-wired button can be more reliable than radio at close range — we compare the two approaches in our wireless remote vs handheld breakdown. Most owners end up using both: a dash button for daily driving and the fob for everything beyond arm's reach.
If you're shopping for a horn where the remote link is already dialed in out of the box, the Extreme Series Train Horn for Milwaukee® 18v Battery ships with the receiver, fob, and a clean antenna layout ready to pair in a minute.
FAQ
Does the 433 MHz remote need a clear line of sight like a TV remote?
No. Radio waves pass through plastic, fabric, and many obstacles that would block an infrared TV remote. But metal still reflects the signal, so while you don't need to see the horn, keeping steel out of the direct path dramatically improves range.
Why does my horn fire up close but not from far away?
That's the classic signature of a weak fob battery. As the CR2032 drains, the transmitter's reach is the first thing to go. Swap in a fresh 3-volt cell before assuming anything is wrong with the horn or receiver.
Can two horns or two fobs interfere with each other?
Each fob is paired to its own receiver by a unique ID, so your remote won't fire a neighbor's horn. But if two 433 MHz devices transmit at the same instant on the same channel, one can briefly drown out the other — which is why a dropout sometimes clears the moment you press again.
How do I add a backup remote?
Put the receiver in learn mode with its code button, then press the new fob once within the timeout window. The receiver stores multiple IDs, so the original fob keeps working alongside the new one.
Is a 433 MHz horn remote legal to use in the US?
Yes. These fobs operate as unlicensed short-range control transmitters under FCC Part 15, the same rules that cover garage-door and gate remotes. They're allowed precisely because they send brief, low-power control bursts rather than a continuous signal.
